Code: A-02

Code: AE-02 Subject: ENGINEERING GRAPHICS

Time: 4 Hours Max. Marks: 100

NOTE:

1. (a) There are SEVEN questions in all and these are arranged in three Sections A, B

and C.

(b) Sections A and B are compulsory and carry 20 marks and 32 marks respectively.

required to answer any 3 questions.

2. Detach this sheet from the question paper and write answers on this sheet only

on Pages 1 & 2. Attach it to the main drawing sheet. Remaining questions are to

be answered on the main drawing sheet.

3. All dimensions given are in mm. Use suitable values of any missing and

mismatching dimensions.

4. Use BIS Code: SP: 46-1988 for all drawings and do not rub off construction lines.

Roll No………………………..

SECTION A (Compulsory) – Marks – 20

Note : - Answer this on question paper itself and annex with the

drawing sheet.

Q1. A. Choose the correct or best alternative in the following: (2 x 10 = 20)

QUESTIONS ANSWER HERE

a True shape of the section can be obtained ________ to the section plane

(A) parallel

(B) perpendicular

(C) inclined at

(D) None of these ______________

b 16 square kilometers area is represented on a map be 1.0 sq. cm, the R.F. of the scale of the map is _________

(A) 1 : 400,000

(B) 400000 : 1

(C) 1 : 40,000

(D) 1 : 4000 ______________

CENTRE STAMP

Signature of Suptd/invigilator

c The top view of a point is 30 mm above X-Y and Front view is 20 mm below

X-Y line. The point is in _____________ Quadrant.

(A) I (B) II

(C) III (D) IV ______________

d When a circle rolls without slipping around the outside of a fixed circle the locus of fixed point lying on the rolling circle is ___________

(A) cycloid (B) ellipse

(C) epicycloid (D) involute ______________

e ____________ is the element used to transmit rotation between a shaft and the parts mounted on it.

(A) key (B) cotter

(C) rivet (D) none _____________

f On a double start thread, the lead is _________ the pitch.

(A) equal to

(B) twice

(C) half of

(D) none of these ______________

Q1. B. State whether True or False

g Development of a cone is a sector of circle.

(A) TRUE (B) FALSE

h The ratio of the circumferential and axial motions of a point, tracing a helix is constant.

(A) TRUE (B) FALSE

i A knuckle joint is used to join two pipes.

(A) TRUE (B) FALSE

j The line of intersection of a cylinder and cone is a straight line.

(A) TRUE (B) FALSE

SECTION B (Compulsory)

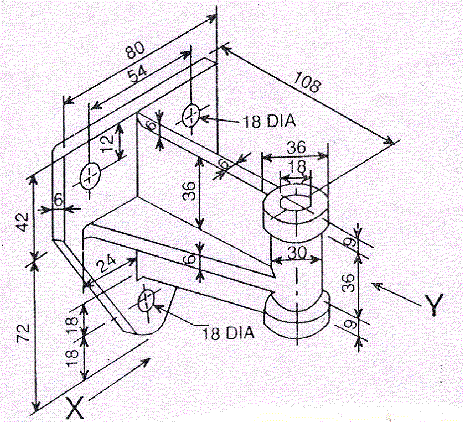

Q.2 Fig. 1 on page 4 shows the isometric view of an object. Draw the following orthographic views. Take 1:1 scale

(i) Front view looking from ‘X’.

(ii) Side view looks from ‘Y’. (16+16 = 32)

SECTION C

Answer any THREE Questions. Each question carries 16 marks.

Q.3 The top view of a 60 mm straight line measures 40 mm while the length of its front view is 50 mm. Its one end A is in H.P. and other end B in V.P. Draw its projections and determine its inclination with H.P. and V.P. Show the trances and measure the distances of the traces from the reference planes. (16)

Q.4 Construct a diagonal scale of 3:200 showing meters, decimeters, centimeters and the measure up to 6 meters. Show a distance of 4.56 m on the scale. (16)

Q.5 A pentagonal prism 20 mm side of base and 50 mm high stands vertically with one of its rectangular faces parallel to V.P. and nearer to it. A section plane inclined at to H.P. and perpendicular to V.P. passes through one of the extreme corners of the top face of the prism. Develop the lower portion of the lateral surface of the prism so as to produce a one-piece development. (16)

Q.6 a. Draw the following rivet heads taking proportionate dimension. Take the nominal diameter = 24 mm.

(i) Button head

(ii) Cone head (8)

b. Draw two views of hexagonal headed nut and bolt using locking by split pin. Take the nominal diameter = 30 mm. (8)

Q.7 Construct a hyperbola, when the distance of the focus from the directrix is 65 mm and eccentricity is 3/2. (16)

Fig. 1
